Dome Storage Building, Commercial Round Building
TSU-3040, TSU-3065(standard, with mechanical door)

Most Popular Model in Europe and America, Best Selling.  Strong structure and fabric, best quality, most safty protection in snow weather. Widely use as Carport, Garage, Storage, Workshop, Party and so on...

TSU-3040, TSU-3065

Size: L12 x W9.15 x H4.5m (L40’ x W30’ x H15’),  L20 x W9.15 x H4.5m (L65’ x W30’ x H15’)

All Steel frame is hot galvanized for Antirust.

Arches :Φ 60x1.8mm hot galvanizing steel tubes, 2m spacing. With base plate at bottom of each arch and 3 stake pegs on each base plate for anchor.

Purlins :60x1.8mm hot galvanizing steel tubes, total 5 groups purlins.

Lower roof cover tensioning tube : Φ32x1.2mm hot galvanizing steel tubes

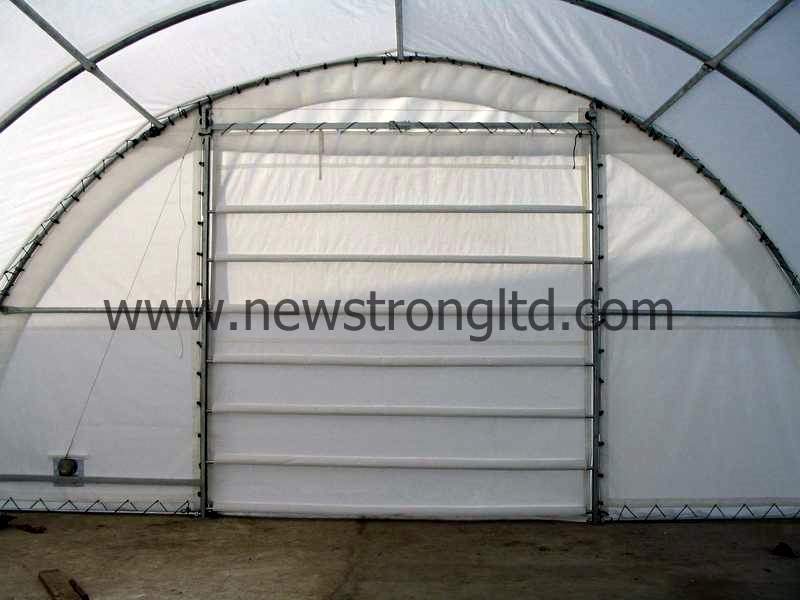

Door Type: mechanical rolling up door, door size: W3.7 x H3.8m (W12’ x H12.5’)

Delivery time : 20-25 Work Days/GP after order confirmed.

Fabric: 300g/sq.m PE or 610g/sq.m PVC with 10 years longevity, UV resistant, Fire retardant..

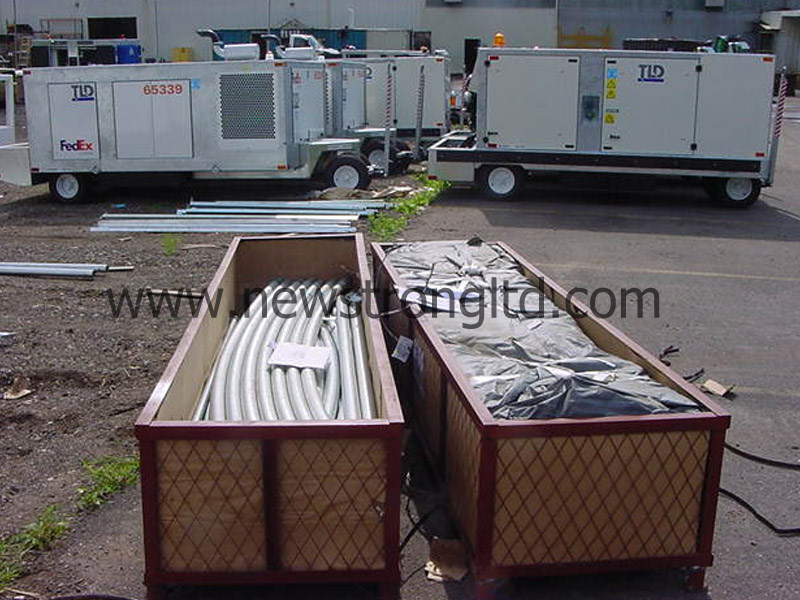

Steel Crate Package

G.W./N.W.: 997/878kgs.  1353/1233kg

Qty/FCL: 24sets/40´ , 18sets/40´

Special dimensions can be made according to your requirement.
