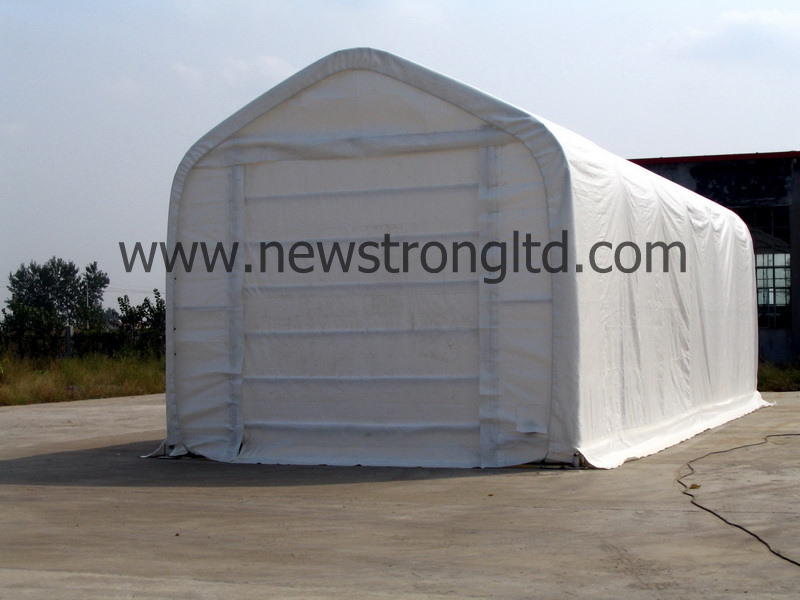

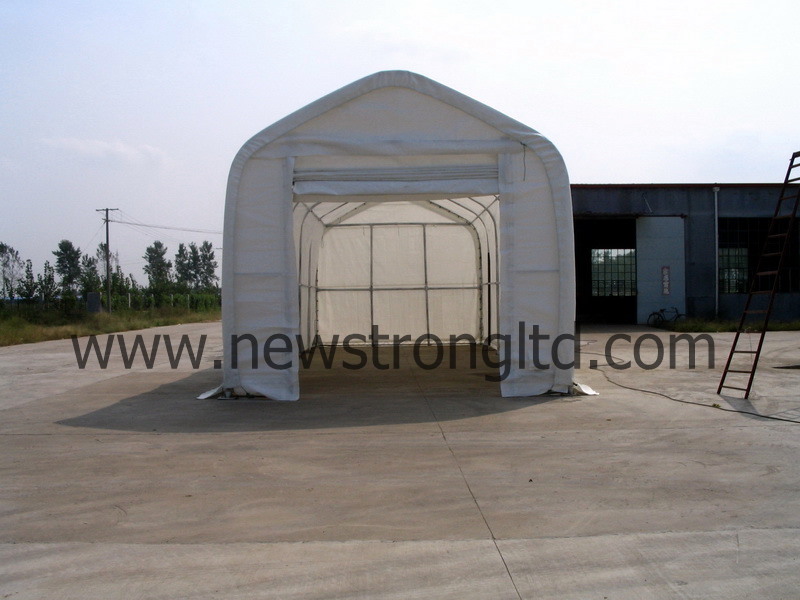

Bus Shelter, Bus Garage, RV/Boat Garage
TSU-1850, TSU-1865

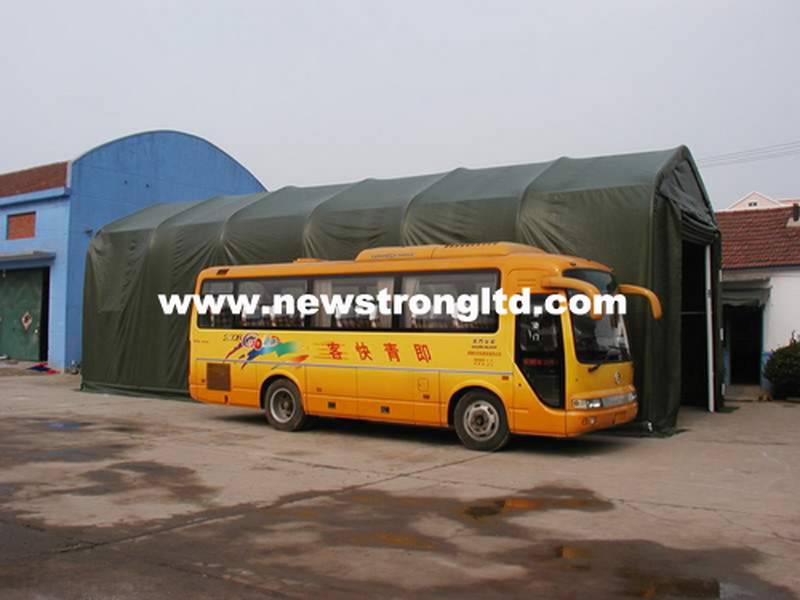

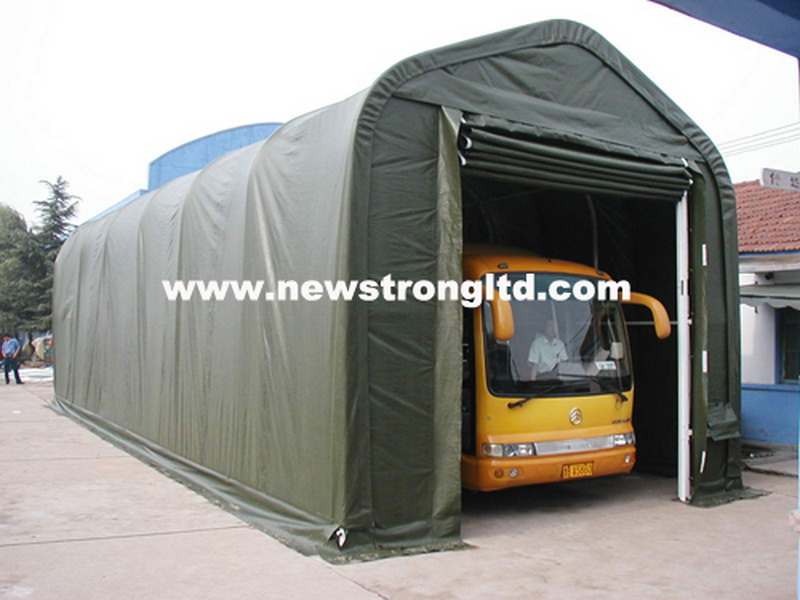

Large Bus Parking Carport, Bus parking, warehouse, storage tent, workshop

TSU-1850, TSU-1865

Size: L15.0/20.0 x W5.5 x H5.3m (L49’/65´ x W18’ x H17.5’)

All Steel frame is hot galvanized for Antirust.

Arches :Φ 76x2.0mm hot galvanizing steel tubes, 2.5m spacing. With base plate at bottom of each arch and 3 stake pegs on each base plate for anchor.

Purlins :60x1.8mm hot galvanizing steel tubes, total 5 groups purlins.

Lower roof cover tensioning tube : Φ32x1.2mm hot galvanizing steel tubes

Door Type: one mechanical rolling up door, door size: W3.4 x H4.1m (W11’ x H13.5’)

Delivery time : 20-25 Work Days/GP after order confirmed.

Fabric: 300g/sq.m PE or 610g/sq.m PVC with 10 years longevity, UV resistant, Fire retardant..

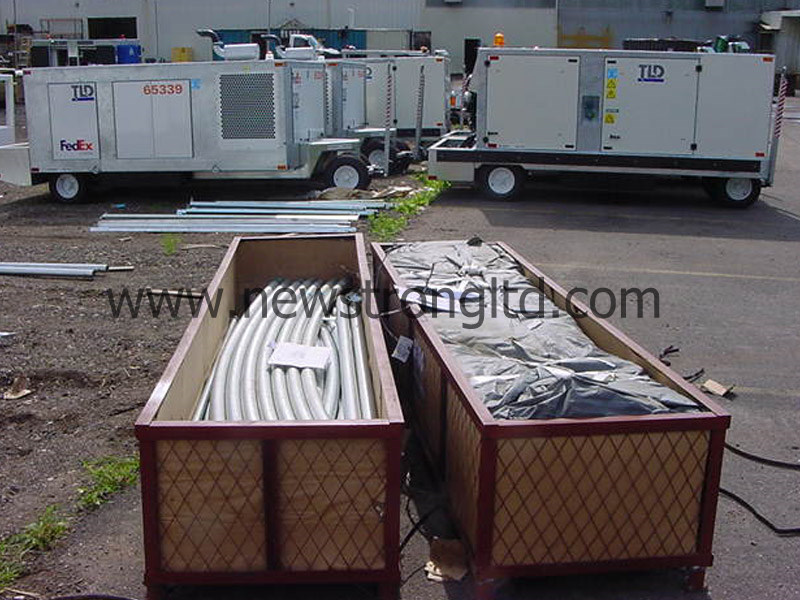

Steel Crate Package

G.W./N.W.: 1025/905kgs. 1225/1084kg (PE)

Qty/FCL: 20sets/40´, 18sets/40´

Special dimensions can be made according to your requirement.
